Premium Quality Sintered Bushing
| I.D.(d) | 25 |
| I.D. (d1) | |
| O.D. (D) | 32 |
| O.D. (D1) | |
| Length (L) | 32 |
| Flange Dia. (fd) | 40 |
| Flange Thickness (fl) | 5 |
| General Tolerance | F7 r7 js13 |
| Weight(ref)/Gram | 79.90 |
| Minimum Order Qty | 40KGS |

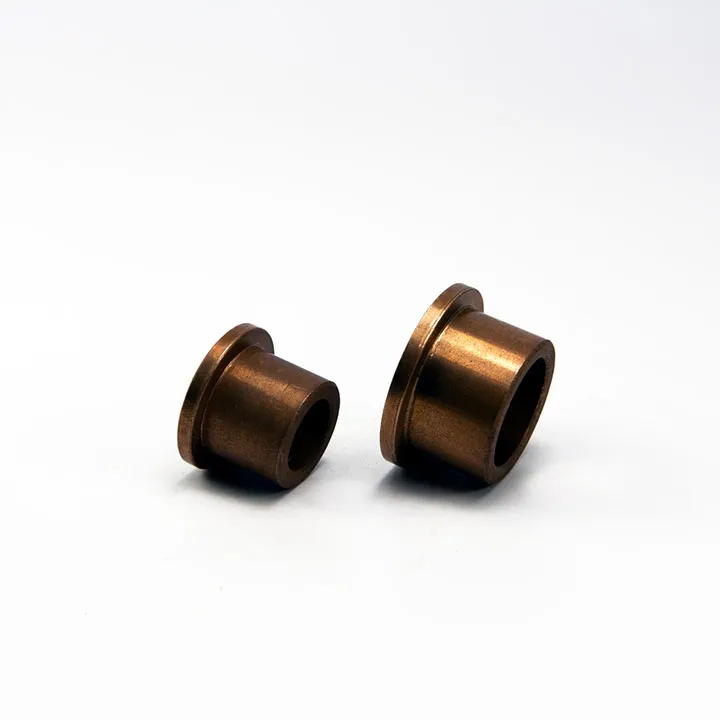

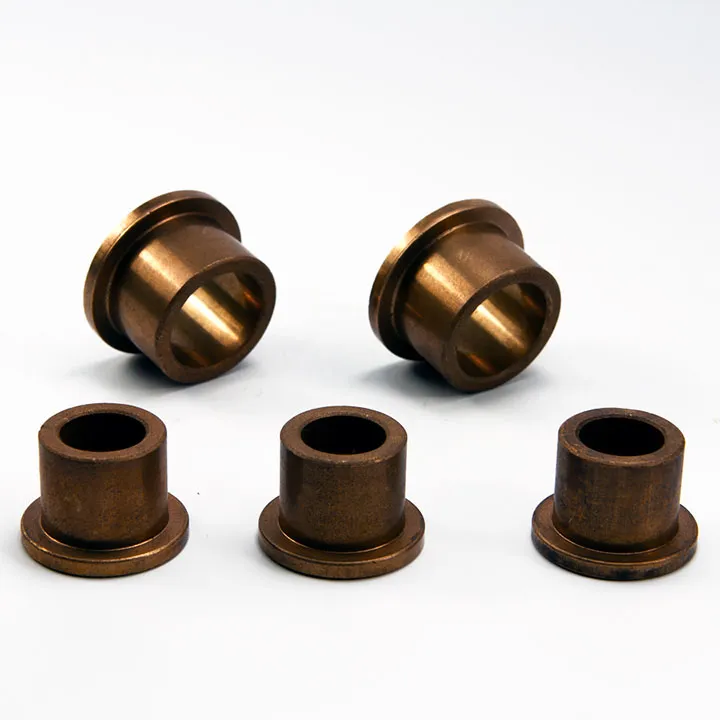

DALON’s 25×32×40×5×32 mm flanged bronze bushing is a high-performance sintered bearing designed for applications requiring both radial and thrust load support. The flanged end enables secure axial retention, making it ideal for assemblies with end-stop constraints or where axial alignment is critical.
Manufactured using advanced powder metallurgy, the bushing features an oil-impregnated porous structure that provides permanent self-lubrication and long service life under rotating or oscillating loads.
Dimensions:
• Inner Diameter (ID): 25 mm
• Outer Diameter (OD): 32 mm
• Total Length: 40 mm
• Flange Thickness: 5 mm
• Body Length (excluding flange): 32 mm
Material: Sintered bronze (CuSn alloy)
Self-lubricating, maintenance-free operation
Excellent vibration damping and load-bearing properties
Easy press-fit installation with built-in axial stop
Suitable for dry or marginally lubricated environments
Electric motor shafts and fan housings
Rotary actuators and automation arms
Agricultural and power tool equipment
Packaging and textile machinery
Automotive and off-road vehicle linkages
Gearboxes, pumps, and compressors requiring flange support
As an ISO 9001:2015-certified manufacturer, DALON provides precision-engineered flanged bronze bushings for global OEMs. Our sintered bushings combine dimensional accuracy, oil-retaining structure, and material stability, ensuring dependable performance across industrial sectors.
This 25×32×40×5×32 mm flange model offers both rotational support and thrust resistance, perfect for assemblies that demand secure end positioning and low-maintenance reliability. OEM customizations for tolerances, material blends, and surface treatments are fully supported.
Q1: What does the flange on this bushing do?
It holds the bushing in position axially, preventing it from sliding in housing during operation and absorbing thrust loads.
Q2: Is this bushing pre-lubricated?
Yes. It’s oil-impregnated during sintering, providing built-in lubrication for continuous use.
Q3: Can I install it without adhesive or fasteners?
Yes. It’s designed for press-fit applications, secured mechanically by the flange and housing bore.
Q4: Is sintered bronze better than cast bronze?
For lubrication and vibration control, yes. Sintered bronze offers fine porosity for self-lubrication and smoother operation.
Q5: Can I get custom sizes or tolerances?
Absolutely. DALON supports customized ID/OD/lengths, tolerance classes, and flange thicknesses upon request.
Q6: What industries rely on flanged bronze bushings?
Used across automotive, agricultural, appliance, and industrial machinery markets where both radial and thrust loads exist.
The versatility of SINTERED BRONZE BUSHING 25X32X40X5X32 makes them ideal for numerous applications, including:
SINTERED BRONZE BUSHING 25X32X40X5X32 are engineered for demanding applications where traditional lubrication methods are impractical. They provide exceptional performance, durability, and cost-effectiveness, making them the preferred choice across various industries. Experience the reliability and efficiency of SINTERED BRONZE BUSHING 25X32X40X5X32, designed to meet your specific application requirements.
