Premium Quality Sintered Bushing

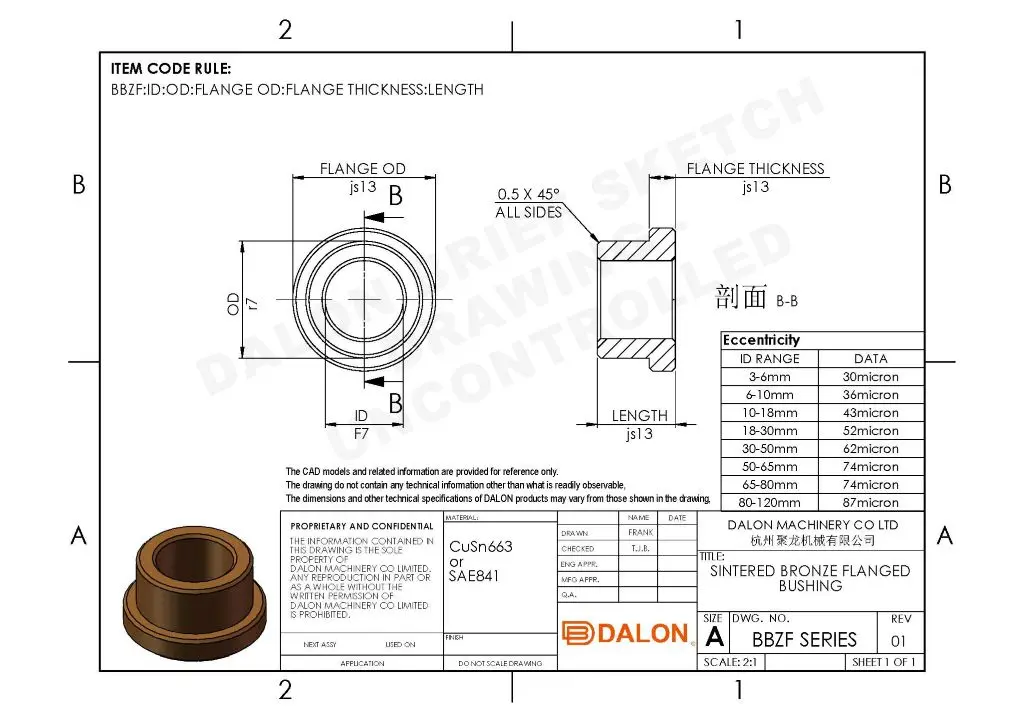

| I.D.(d) | 35 |
| I.D. (d1) | |
| O.D. (D) | 45 |
| O.D. (D1) | |
| Length (L) | 50 |
| Flange Dia. (fd) | 50 |
| Flange Thickness (fl) | 6 |
| General Tolerance | F7 r7 js13 |
| Weight(ref)/Gram | 219.00 |
| Minimum Order Qty | 40KGS |

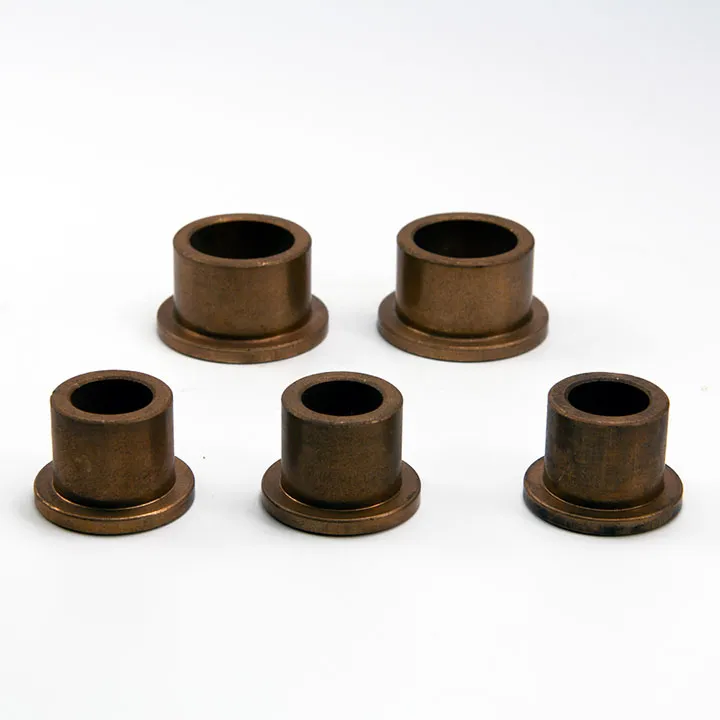

The 35×45×50×6×50 mm bronze sleeve bushing from DALON is a self-lubricating sintered bronze bearing with an integrated flange for improved alignment and axial load support. Manufactured using powder metallurgy, this component features a uniformly porous structure that holds lubricating oil, ensuring long-lasting, low-friction performance in rotating or oscillating applications.
The added flange (6 mm thick) enhances positioning accuracy and simplifies mounting within mechanical systems.
Dimensions:
• Inner Diameter (ID): 35 mm
• Outer Diameter (OD): 45 mm
• Length: 50 mm
• Flange Thickness: 6 mm
• Flange Diameter: 50 mm
Material: Oil-impregnated sintered bronze
Design: Flanged sleeve bushing
Lubrication: Maintenance-free, pre-lubricated
Performance: High wear resistance, shock load absorption
Rotating shafts in electric motors
Agricultural and construction machinery
Industrial gear reducers and drive systems
Automation equipment and presses
Automotive components requiring flange mounting
DALON is a trusted OEM manufacturer of sintered bronze bushings, certified under ISO 9001:2015. We offer precise tolerance control, consistent oil distribution, and robust structural integrity across all our sleeve and flanged bushings.
Whether for mass production or custom machinery, DALON provides flexible solutions, including material blends, non-standard dimensions, and packaging configurations.
Q1: What is the function of the flange on this bushing?
The flange ensures axial load support and simplifies installation alignment within housing.
Q2: Can this bushing handle continuous rotation?
Yes. It's designed for continuous or oscillating movement under low to moderate speeds.
Q3: Is this product compatible with vertical shafts?
Absolutely. The oil-retaining bronze structure supports both vertical and horizontal axis orientations.
Q4: Do I need to add grease or oil during installation?
No. It comes pre-lubricated with oil that’s retained within the porous metal structure.
Q5: Can DALON modify the flange dimensions for special applications?
Yes. We provide full OEM customization for flange diameter, thickness, and mounting geometry.
Q6: What industries typically use flanged sleeve bushings?
They are widely used in automotive, agriculture, industrial machinery, and robotics systems.
The versatility of SINTERED BRONZE BUSHING 35X45X50X6X50 makes them ideal for numerous applications, including:
SINTERED BRONZE BUSHING 35X45X50X6X50 are engineered for demanding applications where traditional lubrication methods are impractical. They provide exceptional performance, durability, and cost-effectiveness, making them the preferred choice across various industries. Experience the reliability and efficiency of SINTERED BRONZE BUSHING 35X45X50X6X50, designed to meet your specific application requirements.
Our professional team is ready to assist with your inquiry for this Flanged Bronze Bushing – For Motors, Gearboxes & Pumps.
