Premium Quality Sintered Bushing
| I.D.(d) | 20 |
| I.D. (d1) | |
| O.D. (D) | 26 |
| O.D. (D1) | |
| Length (L) | 40 |
| Flange Dia. (fd) | 32 |
| Flange Thickness (fl) | 2 |
| General Tolerance | F7 r7 js13 |
| Weight(ref)/Gram | 59.90 |
| Minimum Order Qty | 40KGS |

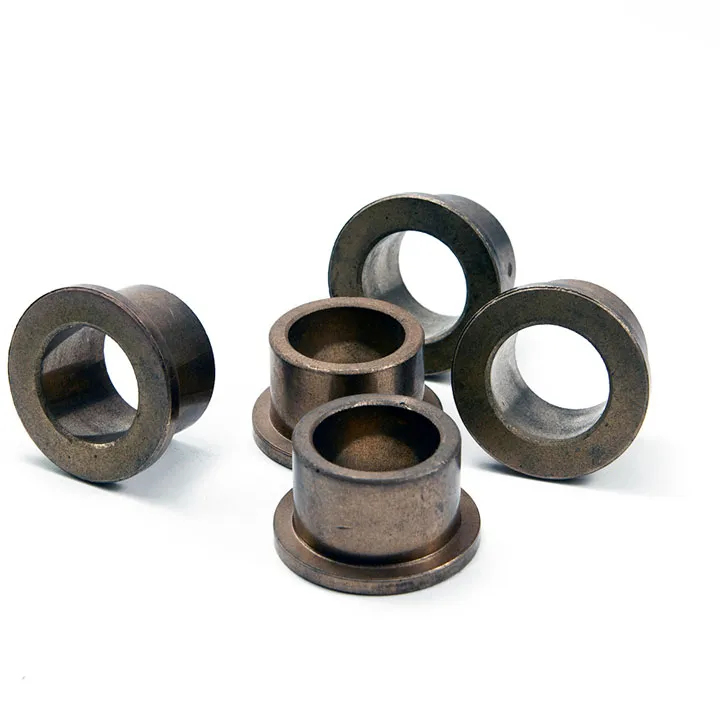

DALON’s 20×26×32×2×40 mm bronze flange bearing is a precision-engineered sintered component designed for applications requiring both radial and thrust support in compact mechanical systems. The flanged design prevents axial displacement, providing enhanced positioning and load distribution.
Manufactured from high-purity bronze using powder metallurgy, this bearing features interconnected pores filled with oil, delivering long-lasting, maintenance-free lubrication under oscillating or rotary motion.
Dimensions:
• Inner Diameter (ID): 20 mm
• Outer Diameter (OD): 26 mm
• Body Length: 32 mm
• Flange Thickness: 2 mm
• Total Length (including flange): 40 mm
Material: Sintered bronze (typically CuSn10 or CuSn8)
Self-lubricating, dry-run capable bearing
Durable and vibration-absorbing structure
Low friction coefficient for energy efficiency
Easy press-fit installation into housings or shafts
Electric motor and gear reducer shafts
Automation arms and mechanical linkages
Garden equipment, sewing machines, and home appliances
Automotive components requiring radial/thrust guidance
Office machines, actuators, and fitness devices
DALON is a trusted global manufacturer of sintered bronze bearings, operating under ISO 9001:2015-certified processes. Our bronze flange bearings provide precise shaft support and lubrication in tight assemblies, extending equipment life and reducing maintenance.
This specific 20×26×32×2×40 mm model is ideal for OEMs needing reliable rotational and axial support in compact housings. We offer full customization, including tolerance adjustments, flange dimensions, and oil-fill specifications.
Q1: What’s the purpose of the flange in this bronze bearing?
The flange holds the bearing in place and handles axial loads, preventing sliding or misalignment during use.
Q2: Is this bearing suitable for dry or low-lubrication environments?
Yes. The sintered bronze structure is oil-impregnated, providing continuous self-lubrication without grease.
Q3: How is this installed?
It is designed for press-fit installation, easily inserted into standard or custom housings without additional fasteners.
Q4: Is this bearing resistant to corrosion or wear?
Yes. Bronze offers excellent resistance to wear and oxidation, suitable for medium-load mechanical systems.
Q5: Can I request a different flange size or oil grade?
Definitely. DALON provides OEM-tailored bearings to meet specific fit, load, and lubrication requirements.
Q6: What markets use bronze flange bearings like this?
Used in automotive, automation, household appliances, power tools, and light industrial machinery.
The versatility of SINTERED BRONZE BUSHING 20X26X32X2X40 makes them ideal for numerous applications, including:
SINTERED BRONZE BUSHING 20X26X32X2X40 are engineered for demanding applications where traditional lubrication methods are impractical. They provide exceptional performance, durability, and cost-effectiveness, making them the preferred choice across various industries. Experience the reliability and efficiency of SINTERED BRONZE BUSHING 20X26X32X2X40, designed to meet your specific application requirements.
Our professional team is ready to assist with your inquiry for this 20 mm Bronze Flange Bearing – Oil-Impregnated Bushing.
