Premium Quality Sintered IronBushing
| Manufacturer | DALON |
| Material | Iron Base / SAE 863 |
| Type | FLANGE BUSHING |
| Working Temperature ?/td> | from -20°C to +120°C |
| Product Code | SIB506070650 |
| Density (g/cm³) | from 6.0 to 6.8 |
| HS Code | 84839000 |
| Hardness | 35 ~ 50 HRB |
| Static Load (Mpa) | 850 kg/cm² |
| Max Speed (m/s) | 5 m/s |
| Max PV (dry) | 1.0 – 1.5 MPa·m/s |

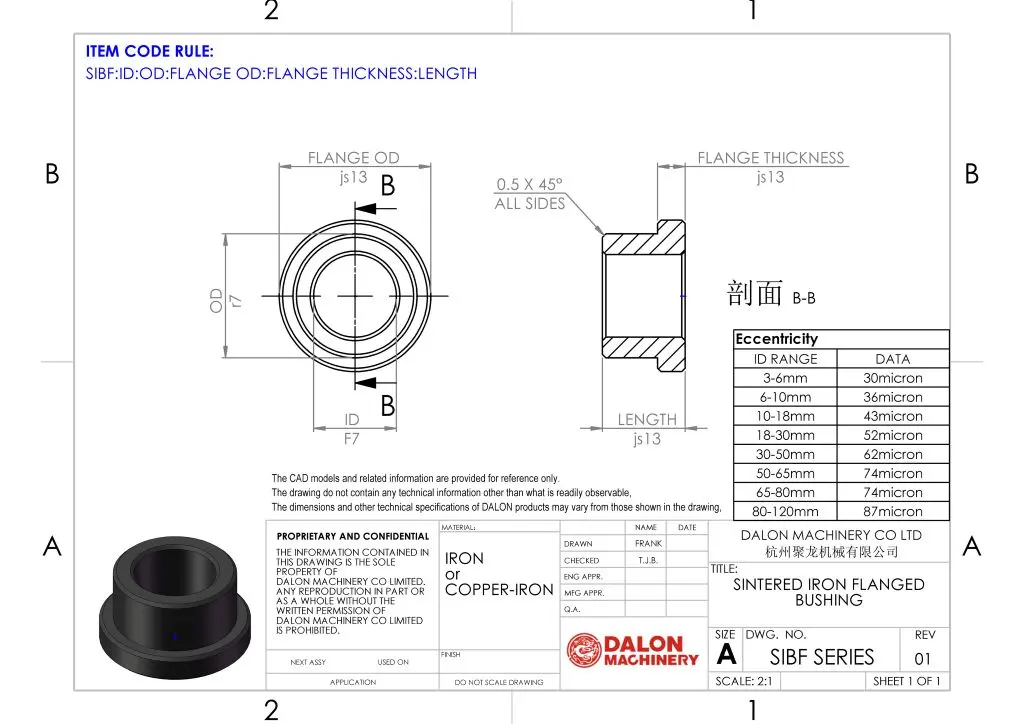

| I.D.(d) | 50 |
| I.D. (d1) | |
| O.D. (D) | 60 |
| O.D. (D1) | |
| Length (L) | 50 |
| Flange Dia. (fd) | 70 |
| Flange Thickness (fl) | 6 |
| General Tolerance | E7 r7 js13 |
| Weight(ref)/Gram | 336.00 |
| Minimum Order Qty | 40KGS |
DALON’s sintered iron flanged rod bushing 50×60×70×6×50 is a high-strength, oil-impregnated bearing solution engineered for supporting linear and rotary motion in rods, shafts, or heavy equipment joints. The bushing combines a self-lubricating porous iron structure with a reinforced flange, providing precise axial support, excellent vibration damping, and maintenance-free operation.
With its large diameter (50 mm ID, 60 mm OD), robust flange (70 mm OD, 6 mm thickness), and total length of 50 mm, this bushing is well-suited for heavy-duty mechanical assemblies such as construction tools, agricultural equipment, and power actuators.
Product Type: Flanged Rod Bushing
Material: Sintered iron with embedded oil lubrication
Dimensions: 50 × 60 × 70 × 6 × 50 mm (ID × OD × Flange OD × Flange Thickness × Length)
Lubrication: Self-lubricating, maintenance-free design
Performance: High load capacity and excellent wear resistance
Customization: Available with different oils, tolerances, and surface treatments
Rod and shaft supports in hydraulic or pneumatic cylinders
Pivot points in lifting arms or structural linkages
Industrial press mechanisms and rotating machines
Power tool drive assemblies and agricultural linkages
Machinery guiding sleeves for reciprocating rods
DALON is a global manufacturer specializing in sintered self-lubricating bearings and bushings, produced under ISO 9001:2015. Our sintered iron flanged rod bushings are designed for OEM clients requiring reliable, long-lasting, and maintenance-free components.
Benefits include:
Custom Design Services – We offer tailored solutions in size, tolerances, lubrication, and geometry
Flexible Production Timelines
Standard mold items: shipped in approx. 30 days
Newly-tooled items: produced within 35–40 days including mold creation
Quantity Flexibility – Contact us directly for MOQ discussion on custom items
OEM-Grade Reliability – Trusted by global equipment manufacturers in various heavy industries
Q1: What is a rod bushing used for?
Rod bushings are used to support and guide reciprocating or rotating rods, often in hydraulic systems, presses, or linkage joints.
Q2: Why choose sintered iron for rod bushings?
Sintered iron is durable and naturally porous, allowing it to be impregnated with oil, creating a self-lubricating system ideal for industrial wear conditions.
Q3: Can the flange dimensions be customized?
Yes. We can adjust the flange OD, thickness, and even include special mounting features to match your housing design.
Q4: What loads can this type of bushing handle?
These bushings are designed for moderate to heavy loads in both radial and axial directions, suitable for construction and mechanical applications.
Q5: Is this bushing suitable for vertical shafts?
Absolutely. The flange helps prevent axial slippage, making it ideal for both vertical and horizontal shaft orientations.
Q6: What is the typical delivery lead time?
Standard mold parts: ~30 days
Custom designs: ~35–40 days including tooling
Q7: Can I order a small batch of customized rod bushings?
Yes. We offer low MOQ production for OEM custom designs—please contact DALON for details.
Q8: What industries use rod bushings like this?
Commonly used in construction machinery, industrial presses, automation equipment, transportation systems, and mechanical linkages.
The versatility of SINTERED IRON FLANGE BUSHING 50X60X70X6X50 makes them ideal for numerous applications, including:
SINTERED IRON FLANGE BUSHING 50X60X70X6X50 are engineered for heavy-duty applications where superior load capacity and durability are essential. They offer exceptional wear resistance, high load-bearing capabilities, and long service life, making them the ideal choice for demanding industrial applications. Experience the strength and reliability of SINTERED IRON FLANGE BUSHING 50X60X70X6X50, designed to meet the rigorous demands of heavy machinery and industrial equipment.
Our professional team is ready to assist with your inquiry for this Heavy-Duty Rod Bushing – Sintered Iron 50×60×70×6×50.
